Surge Protection Device for LED Street Lighting

LED Light is a voltage sensitive device and must be supplied with a voltage above its threshold voltage and a current below their rating. Its lifetime will be reduced dramatically even with a small change in applied voltage. In order to prevent failure or to extend its life time, the installation of proper surge protective device (SPD) against surge damage is highly recommended.

The low voltage surge protector WS3VT/390-10 is a compact surge protection device (SPD) especially for outdoor LED light and LED street light in lightning & surge protection. All mode protection circuit enables it used universally worldwide. VT technology is used to eliminate leakage current to ground (or protective conductor) to avoid malfunction of upstream residual current protection device.

Features

  • Complied with IEC 61643-11 and UL 1449 4th
  • Designed to protect single-phase LED light or other electrical and electronic facility
  • Suitable for using in Un 110~347Vac single phase
  • VT (GDT and MOV in series) technology to eliminate leakage current. And provide better reliability and robustness & TOV(temporary over-voltage) withstand performance
  • Max Discharge Current up to 10kA 8/20us and Open Circuit Voltage Uoc to 20kV
  • Offering full mode protection to L-PE, L-N, N-PE
  • IP67 waterproof enclosure

Surge Protection Solution for LED Lightning

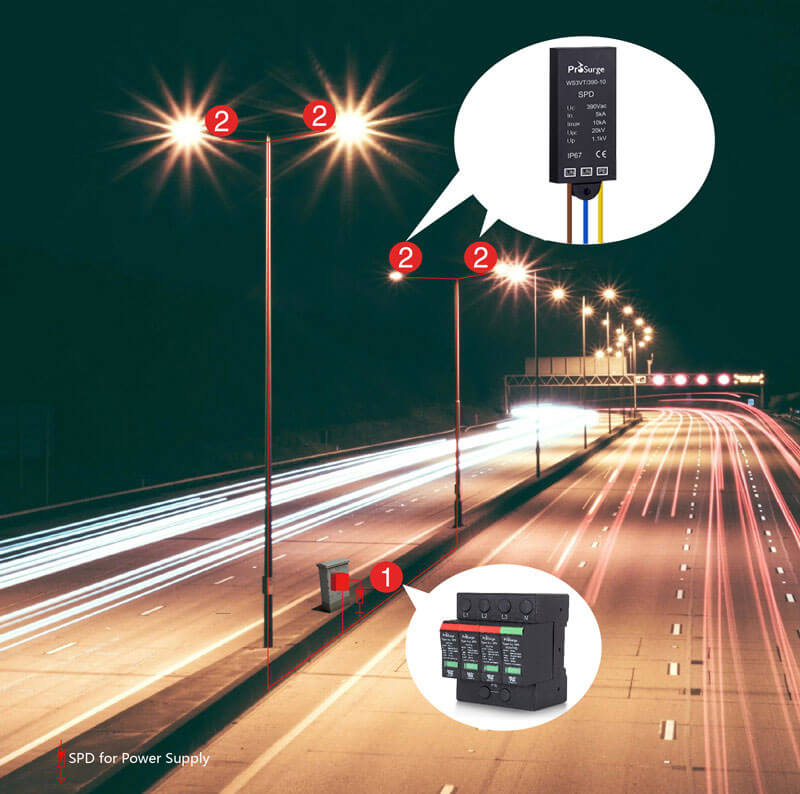

Combined with Prosurge’s DIN-rail SPD, we offer a perfect Class II+III surge protection solution for LED Lightning

surge protection solution for led lighting

LED Surge Protection Device Model Selection

SPD Location SPD Type Recommendation
(UL 1449)
Prosurge Model Surge Capacity
8/20μs
Mounting
1 Control Cabinet Type 1ca SP320/3PN-S 50kA DIN-rail
2 LED Light Fixture Type 4ca WS3VT/390-10 10kA/20kV Hardwired

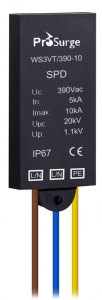

Type WS3VT/390-10
In accordance with IEC61643-11:2011; UL1449 4th
Category IEC/VDE/UL II+III/C+ D/ Type 4 CA
Ports/Protection mode 1/ full mode protectoin
Power system (single phase) 110VAC~347VAC
Max. continuous operating voltage Uc (AC) 390VAC
Nominal discharge current(8/20) In 5kA
Max. discharge current(8/20) Imax 10kA
Open circuit voltage Uoc 20kV
Voltage protection level Up ≤1.1kV
Response time ≤25 ns
Follow current No
Backup fuse(only required if not already provided in mains) 32A gL/gG
Operating temperature range – 40ºC ~ +80ºC
connection wire 1.5 mm2 flexible (L/N: Blue/Brown; PE=Y/G)
Enclosure material ABS; extinguishing degree UL94 V-0
Degree of protection IP67 (Waterproof)
Dimension 81*37.6*13.4mm
Altitude ≤3000m
Relative Humidity ≤95% Non Condensing
