Lightning Equipotential Bonding 2019-01-23T10:58:47+00:00

Features

  • Designed for lightning equipotential bonding, especially for connection of separated earthing systems
  • Up to 100kA 10/350μs lightning impulse current discharge capacity
  • 10mm stainless steel terminal
  • IP 65 design, for in/out door mounting.
  • Extremely loadable unit
  • Accessories are available for easy installation
  • Comply with IEC/EN 62305, IEC 61643-11, UL 96A

Lightning Equipotential Bonding Specification

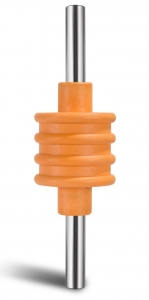

ModelLEB100D230
In accordance withIEC 61643-11, IEC62305
Power Frequency Withstand VoltageUw≥230V AC
Lightning impulse current (10/350μs)Iimp100kA
Nominal Discharge Current (8/20μs)In100kA
100% Lightning Impulse Sparkover VoltageUas≤1.5kV
Power Frequency Sparkover Voltage (50Hz)Uaw≤400V
Operating Temperature Range-40ºC~+80ºC
Diameter of EnclosureD39mm
Degree of ProtectionIP65
Enclosure MaterialOrange thermoplastic, UL94-V0
ConnectionRd 10 mm
Material (Connection)Stainless Steel

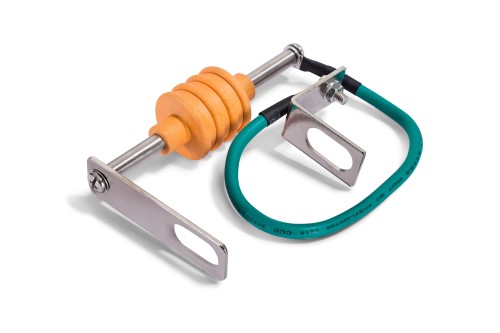

Accessory for Installation
