UL 1449 4th Ed Type 1CA / IEC 61643-11 Type 2 DIN-rail Surge Protection Device – ETL Series

Prosurge ETL series DIN-rail Surge Protection Device (SPD) is a Type 1CA Surge Arrester according to UL 1449 4th (or Type 2 SPD per IEC 61643-11), designed for low-voltage power supply system surge protection, especially for point of entry (Category C,D, ANSI/IEEE C62.41) and sub-circuit (Category B, ANSI/IEEE C62.41) protection.

Rating

  • MCOV (Vac): 150V~690V
  • Surge capacity (8/20μs): 50kA
  • Short circuit current rating (SCCR): 200kArms – tested without external CB or fuse

Features

  • ETL recognized Type 1CA SPD (ANSI/UL 1449 4th), Type 2CA SPD (CSA C22.2 )
  • Low voltage protection level
  • DIN-rail mounting configuration
  • Degradation failure indication and optional remote signal contact
  • Pluggable module for easy replacement
  • Meet both standards of UL 1449-4th and IEC 61643-11:2011
  • Global patented thermal disconnector design with arc extinguishing device, fail-safe & self-protected, quick thermal response and perfect circuit cutoff function. No additional over-current protection devices required

Why Type 1 CA instead of Type 4 CA?

There are some UL recognized SPDs (Surge Protective Devices) on the market. But be aware that many of them are Type 4 CA (Component Assembly) while Prosurge’s SPD are Type 1 CA. For non-prosessionals, they are all UL recgonized with the same UL mark. But there are huge difference between Type 4 CA and Type 1 CA SPDs.

Type 4 Component Assembly SPD (Component Recognized) –– These component
assemblies are incomplete SPD assemblies, which typically are installed in
listed end-use products as long as all conditions of acceptability are met. These Type 4
component assemblies are incomplete as an SPD, require further evaluation and are not
permitted to be installed in the field as a stand-alone SPD. Often, these devices require
additional overcurrent protection.

Type 1, 2, 3 Component Assembly SPDs (Component Recognized) – These are Recognized Component SPDs evaluated for use in Type 1, 2 or 3 SPD applications. Such component SPDs must pass all the same electrical safety failure tests as listed Type 1, 2 or 3 SPDs. These Type 1, 2 or 3 Recognized Component SPDs should not be confused with ANSI/UL 1449-2006 Type 4 Component Assemblies and Type 5 discrete SPD components that require additional components (possibly safety disconnectors), design and testing in order to be used as a complete surge protective device.

Type 4 CA SPD doesn’t not submitted to safety tests like Intermediate Current Test and Short Circuit Current Rating (SCCR) Test and thus they need to work with extra safety protection device.

Prosurge Type 1 CA SPD pass 200kA SCCR (Short Circuit Current Rating) test which is the upper limit in UL lab and thus represents the highest standard in SPD safety.

ETL Certified DIN-rail Surge Protection Device Models Selection

ETL Certified DIN-rail Surge Protection Device (SPD)- 1 Pole

Single-phase Two-wire System



Part No.





Pole

Max. Discharge Current, Imax (8/20μs)

(kA)

Nominal Discharge Current, In (8/20μs)

(kA)



Nominal Voltage (VAC)

Max. Continuous Operating Voltage, MCOV (VAC) Voltage Protection Rating, VPR (kV)

SCCR

Rating (kArms)

L-N L-G N-G L-N L-G N-G
V50/150-S 1 50 20 120 150 150 0.7 0.7 200
V50/180-S 1 50 20 127 180 180 0.7 0.7 200
V50/275-S 1 50 20 240 275 275 1.0 1.0 200
V50/320-S 1 50 20 277 320 320 1.0 1.0 200
V50/420-S 1 50 20 347 420 420 1.2 1.2 200
V50/550-S 1 50 20 480 550 550 1.5 1.5 200
T50/150-S 1 50 20 Neutral 150 0.8 200
T50/255-S 1 50 20 Neutral 255 1.0 200
T50/350-S 1 50 20 Neutral 350 1.2 200
T50/440-S 1 50 20 Neutral 440 1.5 200

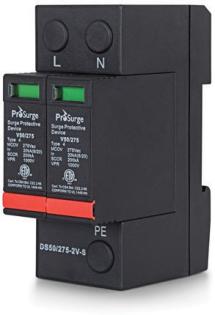

ETL Certified DIN-rail Surge Protection Device (SPD)- 2 Pole

Split-phase Two-wire + Ground System

Single-phase Two-wire + Ground System



Part No.





Pole

Max. Discharge Current,

Imax (8/20μs) (kA)

Nominal Discharge Current,

In (8/20μs) (kA)



Nominal Voltage (VAC)

Max. Continuous Operating Voltage, MCOV (VAC) Voltage Protection Rating, VPR (kV)

SCCR

Rating (kArms)

L-N L-G N-G L-N L-G N-G
DS50/150-2V-S 2 50 20 120 150 150 0.7 0.7 200
DS50/150-(V+T)-S 2 50 20 120 150 150 0.7 0.8 200
DS50/180-2V-S 2 50 20 127 180 180 0.7 0.7 200
DS50/180-(V+T)-S 2 50 20 127 180 150 0.7 0.8 200
DS50/275-2V-S 2 50 20 240 275 275 1.0 1.0 200
DS50/275-(V+T)-S 2 50 20 240 275 255 1.0 1.0 200
DS50/320-2V-S 2 50 20 277 320 320 1.0 1.0 200
DS50/320-(V+T)-S 2 50 20 277 320 255 1.0 1.0 200
DS50/420-2V-S 2 50 20 347 420 420 1.2 1.2 200
DS50/420-(V+T)-S 2 50 20 347 420 350 1.2 1.2 200
DS50/550-2V-S 2 50 20 480 550 550 1.5 1.5 200

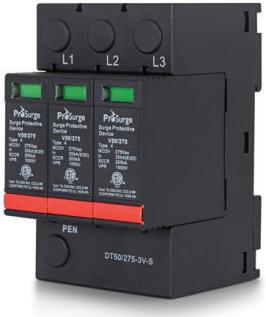

ETL Certified DIN-rail Surge Protection Device (SPD)- 3 Pole

Split-phase Three-wire + Ground System

Three-phase Delta & Wye Three-wire + Ground System



Part No.





Pole

Max. Discharge Current, Imax (8/20μs)

(kA)

Nominal Discharge Current, In (8/20μs)

(kA)



Nominal Voltage (VAC)

Max. Continuous Operating Voltage, MCOV (VAC) Voltage Protection Rating, VPR (kV)

SCCR

Rating (kArms)

L-N L-G N-G L-N L-G N-G
DT50/150-3V-S 3 50 20 120 150 0.7 200
DT50/180-3V-S 3 50 20 127 180 0.7 200
DT50/275-3V-S 3 50 20 240 275 1.0 200
DS50/320-3V-S 3 50 20 277 320 1.0 200
DT50/420-3V-S 3 50 20 347 420 1.2 200
DS50/550-3V-S 3 50 20 480 550 1.5 200

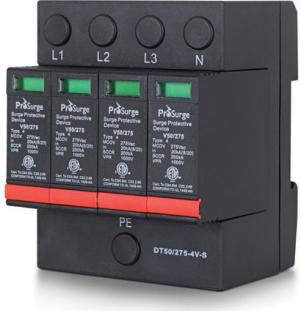

ETL Certified DIN-rail Surge Protection Device (SPD)- 4 Poles

Three-phase Wye (star) Four-wire + Ground System



Part No.





Pole

Max. Discharge Current, Imax (8/20μs)

(kA)

Nominal Discharge Current, In (8/20μs) (kA)

Nominal Voltage (VAC)

Max. Continuous Operating Voltage, MCOV (VAC) Voltage Protection Rating, VPR (kV)

SCCR

Rating (kArms)

L-N L-G N-G L-N L-G N-G
DT50/150-4V-S 4 50 20 120 150 150 0.7 0.7 200
DT50/150-(3V+T)-S 4 50 20 120 150 150 0.7 0.8 200
DT50/180-4V-S 4 50 20 127 180 180 0.7 0.7 200
DT50/180-(3V+T)-S 4 50 20 127 180 150 0.7 0.8 200
DT50/275-4V-S 4 50 20 240 275 275 1.0 1.0 200
DT50/275-(3V+T)-S 4 50 20 240 275 255 1.0 1.0 200
DT50/320-4V-S 4 50 20 277 320 320 1.0 1.0 200
DT50/320-(3V+T)-S 4 50 20 277 320 255 1.0 1.0 200
DT50/420-4V-S 4 50 20 347 420 420 1.2 1.2 200
DT50/420-(3V+T)-S 4 50 20 347 420 350 1.2 1.2 200
DT50/550-4V-S 4 50 20 480 550 550 1.5 1.5 200

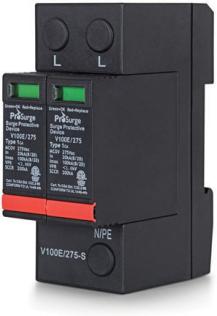

ETL Certified DIN-rail Surge Protection Device (SPD)- V100E G100E


Part No.





Pole

Max. Discharge Current, Imax (8/20μs)

(kA)

Nominal Discharge Current, In (8/20μs) (kA)

Nominal Voltage (VAC)

Max. Continuous Operating Voltage, MCOV (VAC) Voltage Protection Rating, VPR (kV)

SCCR

Rating (kArms)

L-N L-G N-G L-N L-G N-G
V100E/150-S 1 50 20 150 150 150 0.7 0.7 200
V100E/180-S 1 50 20 180 180 180 0.7 0.7 200
V100E/250-S 1 50 20 250 250 250 1.0 1.0 200
V100E/275-S 1 50 20 275 275 275 1.0 1.0 200
V100E/320-S 1 50 20 320 320 320 1.0 1.0 200
V100E/420-S 1 50 20 420 420 420 1.2 1.2 200
V100E/510-S 1 50 20 510 510 510 1.5 1.5 200
V100E/550-S 1 50 20 550 550 550 1.5 1.5 200
G100E/150-S 1 50 20 150 150 0.8 200
G100E/255-S 1 50 20 255 255 1.0 200
G100E/350-S 1 50 20 350 350 1.2 200
G100E/440-S 1 50 20 440 440 1.5 200
