Type 1+2 SPD for Solar PV DC 2017-12-06T14:36:00+00:00

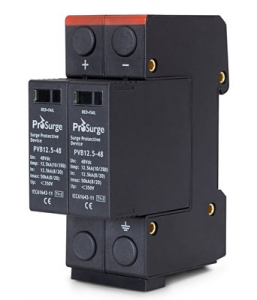

PVB12.5-48

18mm per Pole, Un 48V, Common Mode Protection

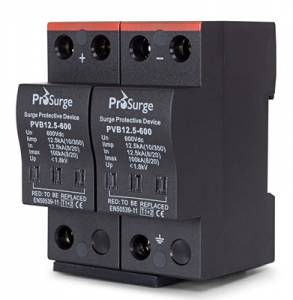

PVB12.5-600

36mm per Pole, Un 600V, Commmon Mode Protection

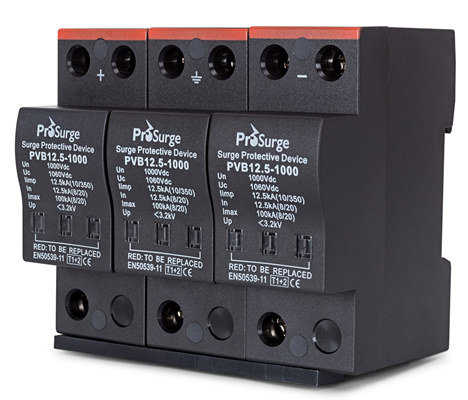

PVB12.5-1000

36mm per Pole, Un 1000V, Full Mode Protection

PVB12.5-48 is a type 1+2 SPD designed for low voltage DC system against surges at the boundaries from lightning protection zone 0B-2 and higher.

Features

  • DC surge protector for DC system common mode protection
    In accordance with IEC61643-11,UL1449-4th;
    Compact size and pluggable design;
    Iimp 12.5kA 10/350 per mode;
    Very low clamping level and high surge current capability (high Iimp, low Up)
    Reliable supervision due to disconnection device;
    Fault indication by red indication flag in window;
    With remote alarm terminal optional;

Spec

Features

  • Class I+II SPD for photovoltaic system
  • In accordance with IEC 61643-11, EN 50539-11, UL 1449 4th
  • Common mode surge protection
  • High surge capacity: 12.5kA 10/350μs, Imax 60kA 8/20μs
  • Reliable supervision due to disconnection device
  • Fault indication
  • remote alarm optional
  • MOV+GDT hybrid technology version available, no leakage nor follow current

Basic Spec

Features

  • Class I+II SPD for photovoltaic system
  • In accordance with IEC 61643-11, EN 50539-11, UL 1449 4th
  • Common mode and differential mode protection
  • High surge capacity: 12.5kA 10/350μs, Imax 60kA 8/20μs
  • Reliable supervision due to disconnection device
  • Fault indication
  • remote alarm optional
  • MOV+GDT hybrid technology version available, no leakage nor follow current

Basic Spec
