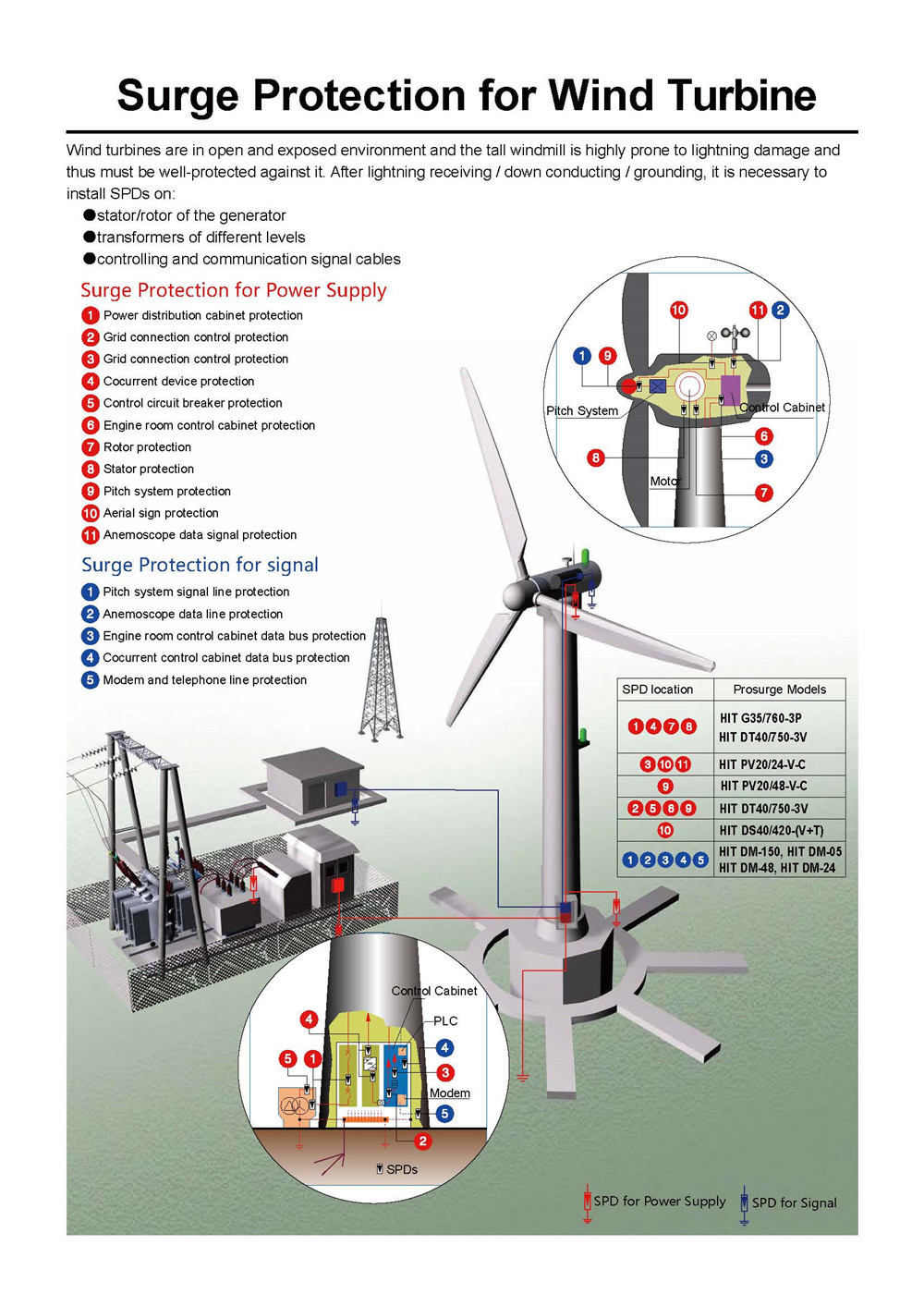

Wind Farms are in open and exposed environment and the tall windmill is highly prone to lightning damage and thus must be well-protected against it. After lightning receiving / down conducting / grounding, it is necessary to install SPDs on:

  • stator/rotor of the generator
  • transformers of different levels
  • controlling and communication signal cables

If you check on Youtube, there are many videos about lightning hits a wind turbine. This may be the NO.1 problem for a wind turbine. A robust lightning / surge protection system is critical for its continuous operation.

Click here to check our surge protection around the world

Surge Protection for Wind Turbine

Surge Protection Device Model Selection

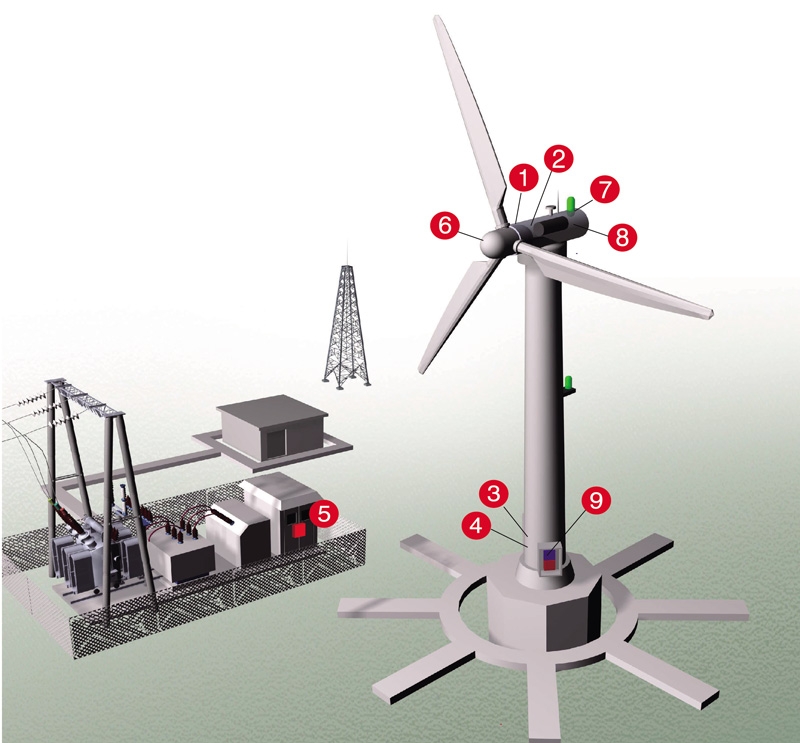

Power SystemInstallation LocationDevice to be ProtectedProsurge Model
Generator Lines 400/690Vac, 3-phase, 3-wire+ground (or TN-C)Nacelle1Stator of GeneratorSP×××/3P-S
2Rotor Winding of GeneratorSP×××/3PT-S
Tower Base3Main Power ServiceSP×××/3P-S
4InverterSP×××/3PT-S
Substation5Low Voltage Side of the TransformerB××VG××
Power Supply 230/400Vac, 3-phase, 3-wire+ground (or TN-C)Hub6Pinch-control CabinetSP×××/3P-S
Nacelle7Aircraft Warning LightSP×××/2P-S
8Nacelle Control CabinetSP×××/3P-S
Tower Base9Tower-base Control CabinetSP×××/3P-S
